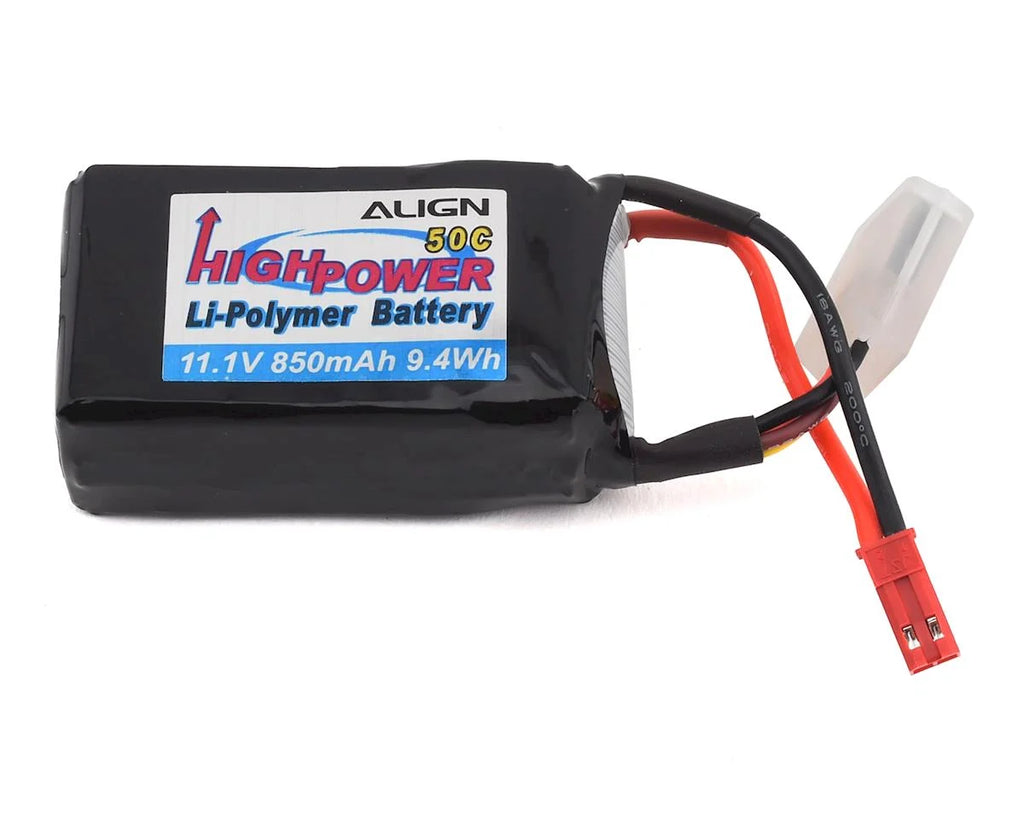

This is an Align 850mAh 3S 50C 3S Li-Polymer Battery . This Li-poly battery features high efficiency and high discharge capabilities, making this pack suitable for the TREX 250 series as well as model airplanes, and any other application that could benefit from a 50C 3S pack with these specifications.
Specifications:
Type: Lithium Polymer
Capacity: 850mAh
Voltage: 11.1V nominal
Number of Cells: 3
Weight: 70 grams (Not including connectors)
Configuration: 3S1P
Dimensions: 55x30x24.5mm
Maximum Continuous Discharge: 30C
Maximum Burst Discharge: 50C
IMPORTANT:
- 1) You will need a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
- 2) You must not over discharge the Li-Poly battery pack.
- 3) Read the instructions carefully before operating this battery.
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage.
Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
