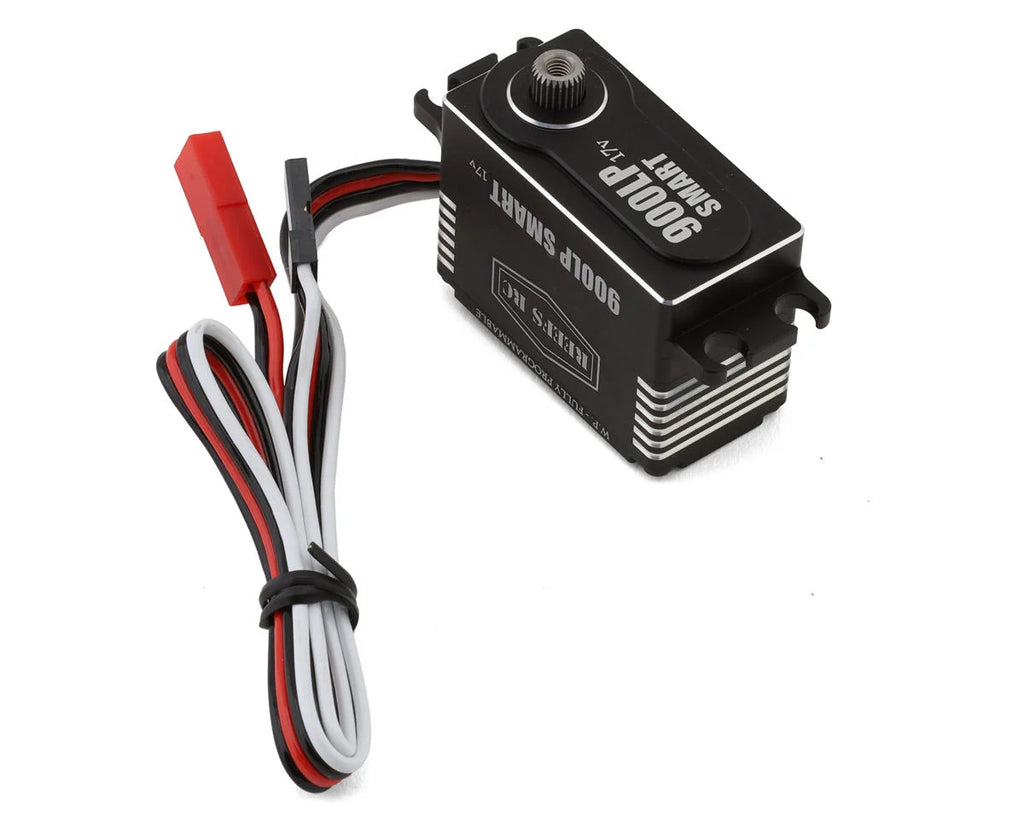

Reefs RC 900LP Smart Low-Profile Brushless Hi-Torque Servo (HV) (Steering/Winch)

NOTE:

• WARNING!! Do not pair with Rhino ESC Systems Or ESCs with built-in BECs! Reefs RC recommends using Holmes or Vt3k ESCs and a 1000mah battery or more, unless you have a Shock Schottky diode.
• Comes as Steering Servo out of the Box
• This is a direct power servo and does not require a BEC

Features:

• Low-Profile and lightweight design
• Powerful 4-Pole brushless motor
• High voltage capable of up to 17V!
• Magnetic angle sensor
• Steel internal gears
• Built-in programmed winch controller
• Fully Programmable via REEFS Software
• Can be utilized as a steering servo or as a winch servo
• "Submarine Waterproof" with 7-point seals
• Heavy CNC Aluminum casing with "ULTRA" finish

Specifications:

• Speed:
• @12.6V: 10sec/60°
• @14.7V: .09sec/60°
• @16.8V: .08sec/60°
• Torque:
• @12.6V: 710oz-in (51.12kg-cm)
• @14.7V: 810oz-in (58.32kg-cm)
• @16.8V: 920oz-in (66.24kg-cm)
• Motor: Brushless
• Operating Voltage: 10V-17V
• Dimensions(LxWxH): 1.6x.79x1.16in (48x20.2x29.5mm)
• Weight: 2.3oz (66g)
• Operating Spline: 25T

Includes:

• (1) 900LP Waterproof Brushless Low Profile Servo
• Assorted Servo Horns and Mounting Hardware
